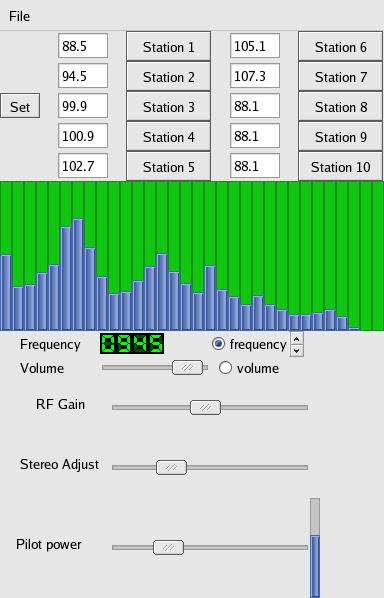

FM Stereo Radio gui with spectrum display:
Additions: Real Radio buttons with presets (edit the code for
your local stations) or they can be set to the currently tuned station.
Press 'set', then click the button to program to the current station. 'set'
un-toggles and the button is programmed and the lable updates.
fm12a_st.py code
Additions: Save to file, stereo pilot power gauge and adjustment.
Changed volume gauge to a slider for use w/o a Powermate knob.
Code has been tightened up, repetitive lines replaced with loops.
The save to file can be used with a named pipe and external utilities
to directly create mp3 recordings of your favorite FM station:
cat /tmp/audiopipe | sox -r 32000 -c 2 -s -w -t raw - -t wav - | lame - > stereo_fm.mp3

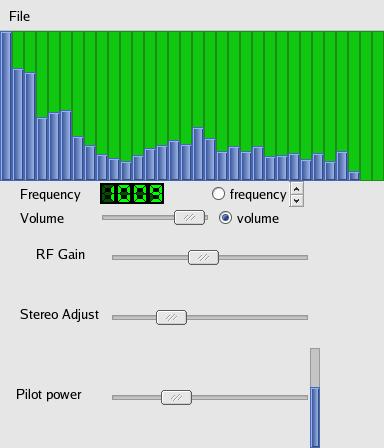

fm10_st.py code
Note: This version does NOT require a Powermate knob to use.
Interestingly, the stereo adjust can be used to reverse channels - I get
best seperation with the adjust at 1/4 or 3/4. With the slider at 0, midway
or max it's mono. The audio spectrum has been moved to pre-deemphasis for
better results, more life in the higher frequencies.

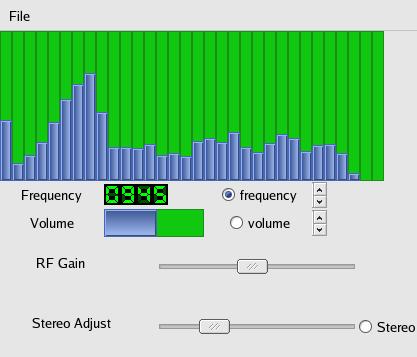

fm4c_st.py code

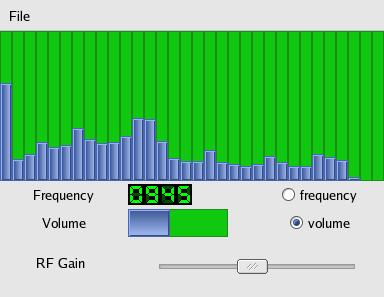

FM Radio gui with audio spectrum gauges:
fm4b.py code
fm4b.wxg wxglade file

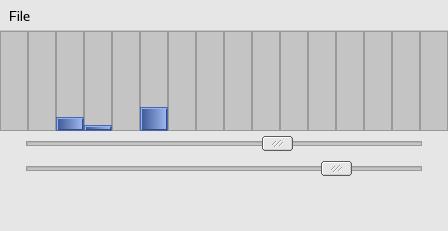

Spectrum display in wx Gauges
This small demo takes a 16 bin fft of two audio frequency signals
and displays the result in 16 wxPython gauges. Adjust the signal
frequencies with the sliders, or the top slider with a Powermate knob
(PM knob optional).
demo code
Requires these gnuradio-core modules (clones of gr_simple_squelch_cc.*) :
Be sure to update gnuradio-core/src/lib/general/Makefile.am and general.i
